Heat−Activated Solder Sleeve Kit

Some electrical fixes should be left to the professionals, but for a little 12-volt DIY, you can’t go past the Solder Sleeve Kit from Hard Korr.

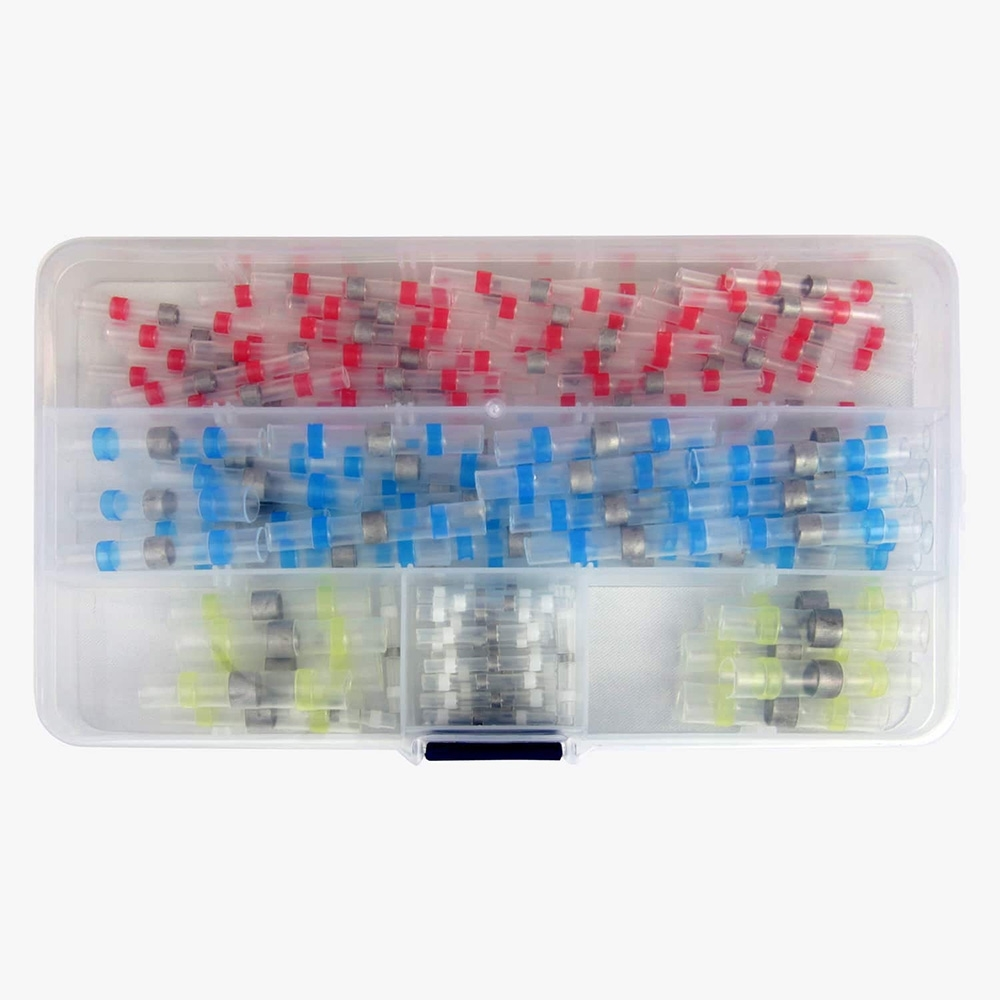

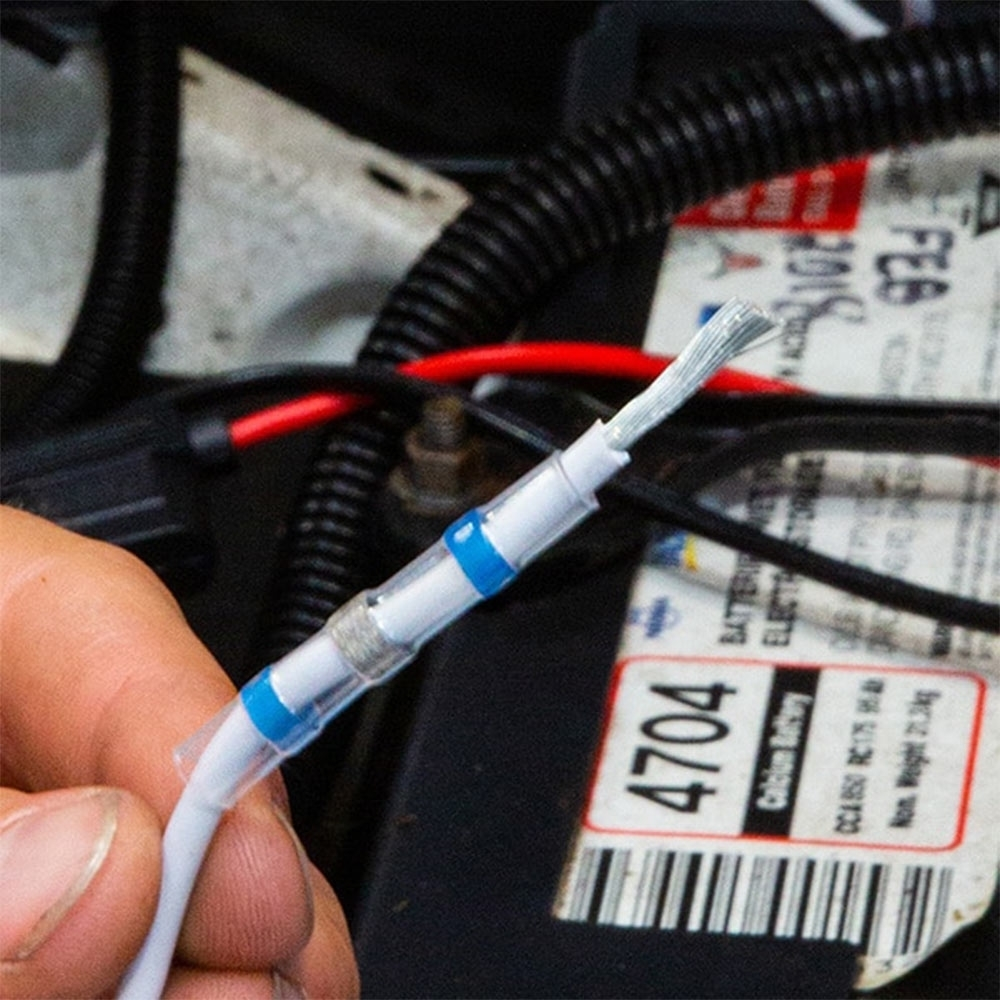

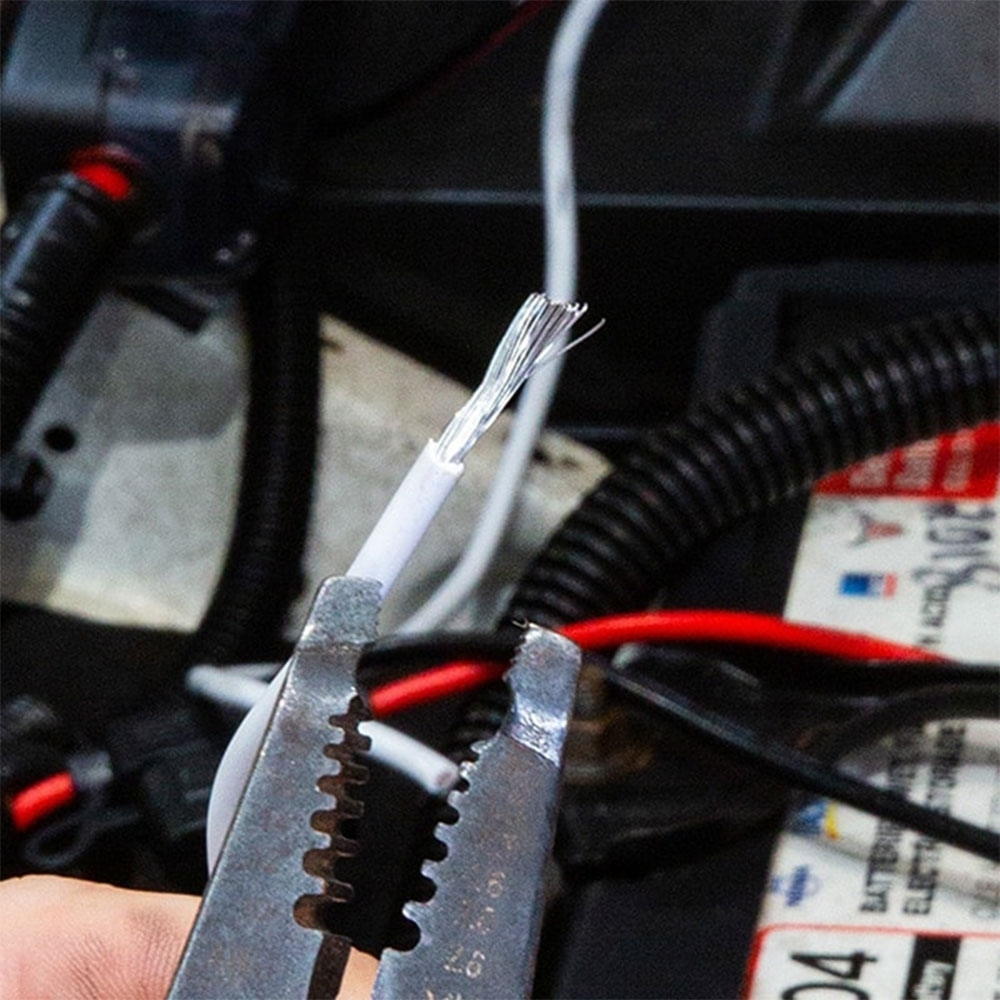

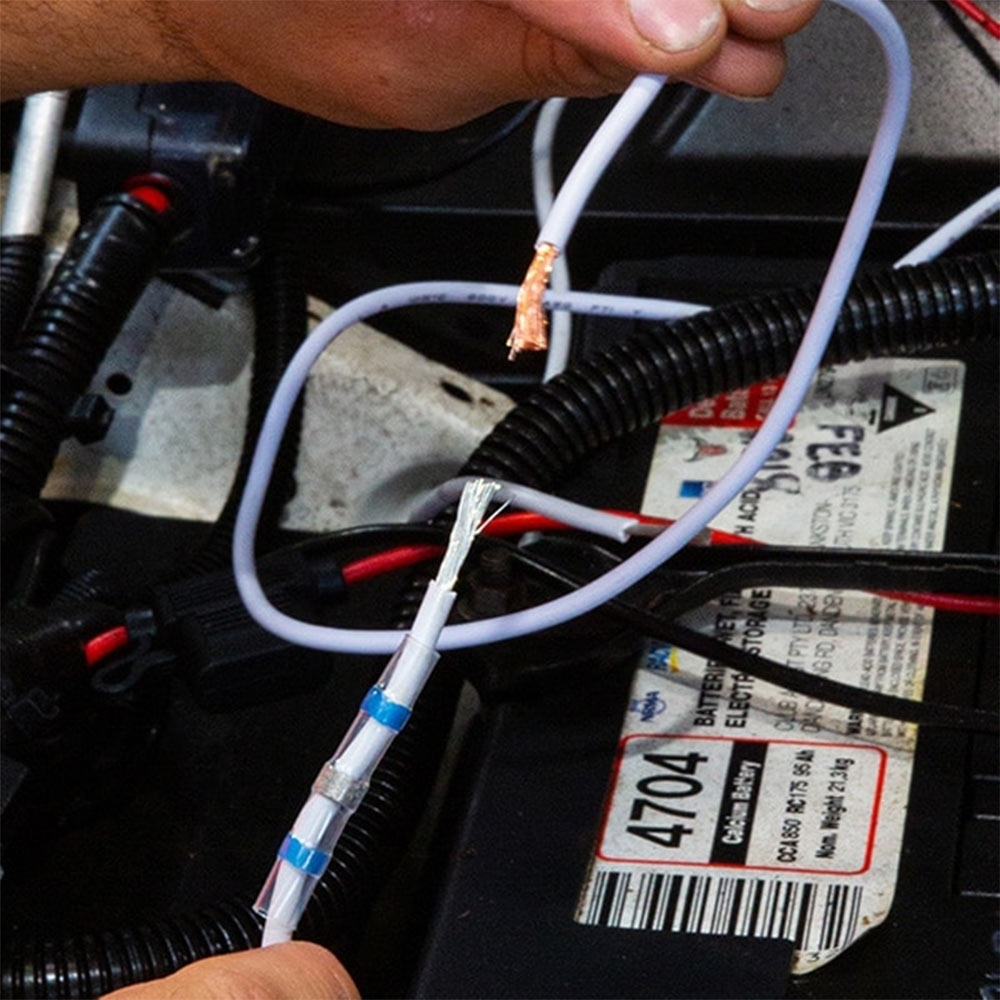

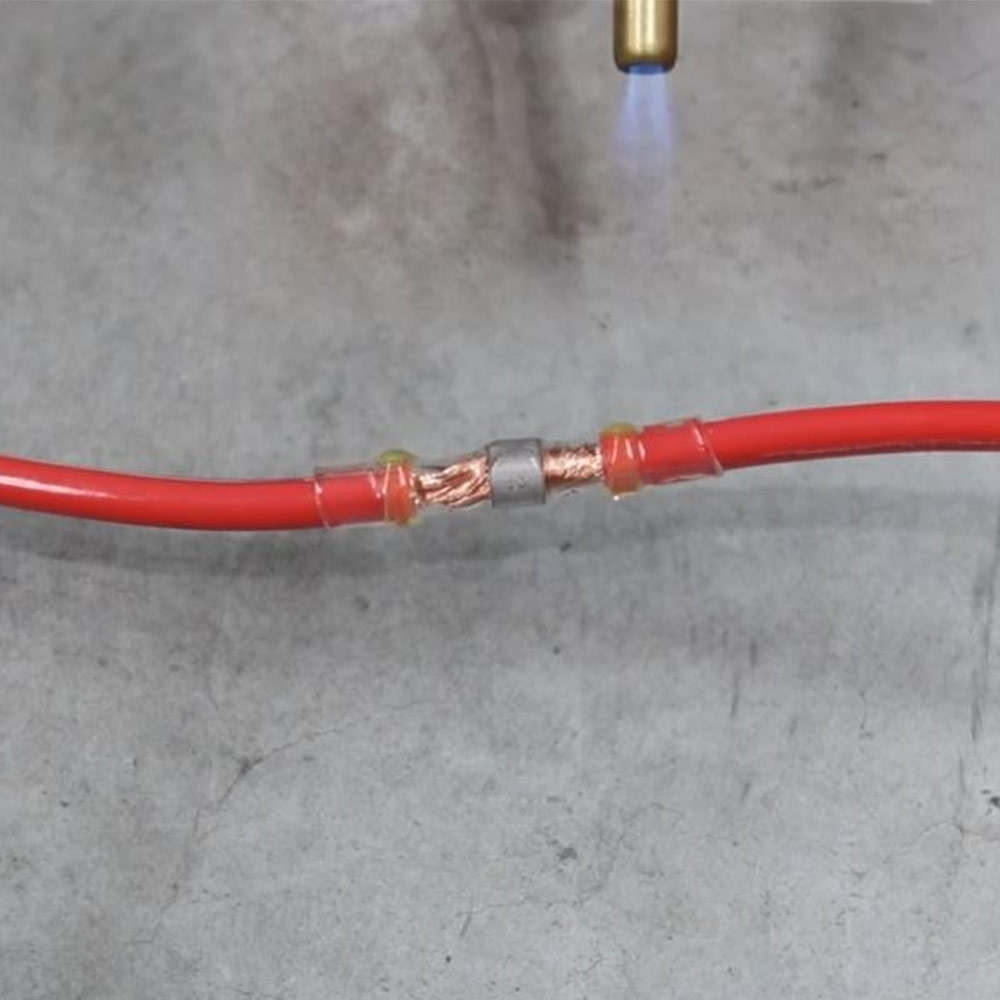

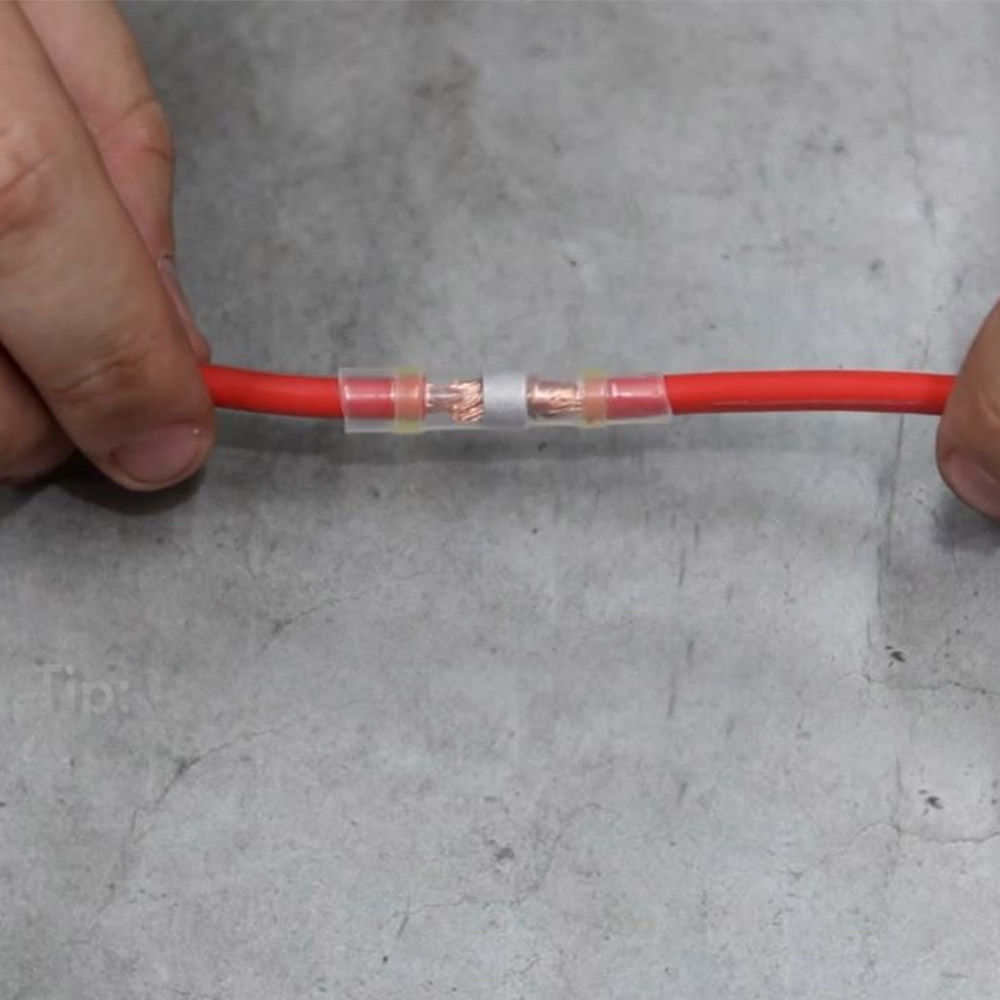

This kit of heat-activated sleeves honestly makes the process of joining up wires so simple. Packed in a neat little case with internal dividers to separate the four sizes, all you have to do is select the size you need to suit your wire. Then slide the sleeve over your wire, strip about 10-15mm of the protective outer away from the wire, meet the two ends of the naked wire together (intertwine and twist), slide the sleeve over the join (see staff tip), then heat the sleeve until it shrinks down around the join. Once cooled, you’ll have a waterproof seal over your wires and a really strong, conductive electrical connection.

Forget taking your crimping tool and soldering iron on your next trip away. Just pack your heat gun or lighter and let the Solder Sleeve Kit from Hard Korr do the job for you.

• Makes joining electrical wires easy
• No soldering needed
• Waterproof connection
• Strong and conductive connection
• 130°C heat shrink activation temp
• 125-150°C solder melting point
• 1000V max voltage
• 2:1 shrink ratio

50 Pcs kit includes:

• 10 x 26-24 AWG tubes
• 20 x 22-18 AWG tubes
• 15 x 16-14 AWG tubes
• 5 x 12-10 AWG tubes

120 Pcs kit includes:

• 30 x 26-24 AWG tubes
• 40 x 22-18 AWG tubes
• 40 x 16-14 AWG tubes
• 10 x 12-10 AWG tubes
